技術參數
l 公稱寬度: 1800mm~3800mm
l 工作幅寬: 600mm~3600mm
l 工作速度: 5m~120m/min
l 烘房溫度: 120度~220度
l 熱源形式:天然氣、導熱油、蒸汽(常壓型、中壓型)
l 烘房節數: 4箱~12箱(自選)
TECH NICAL PARAMETER
l Machine width:18O0mm~ 380Omm
l Working width:600mm~ 3600mm
l Working speed: 5m~ 12Om/min
l Temp. of dryer: 120~220C
l Heater: gas, conduct heating oil and steamer(normal pressure, middle level pressure)
l Number of dryer: 4~12 chambers (optional)

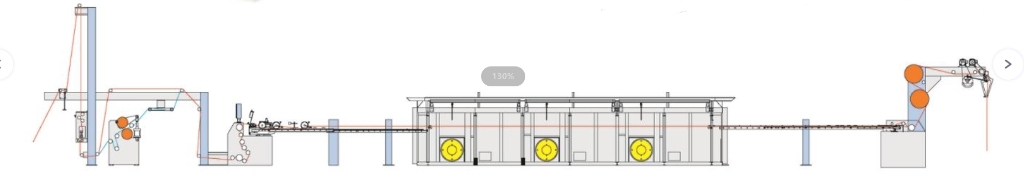

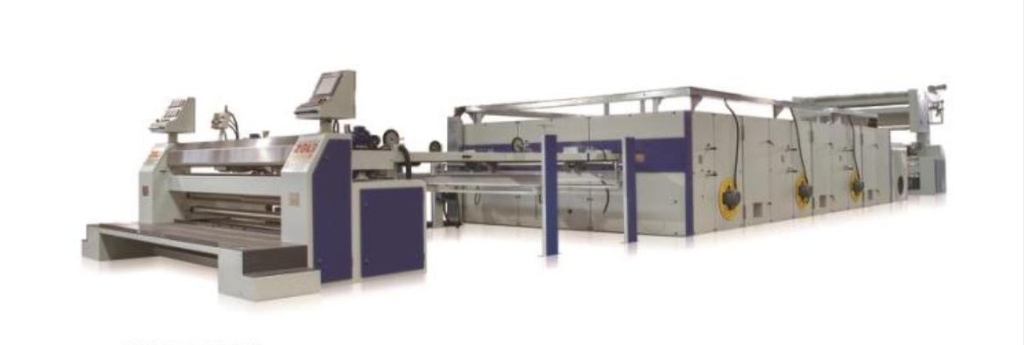

D08定型機用途及特點
D08定型機主要適應于機織物、針織物及梭織物的熱定型。該設備配置2箱~12箱，不同的配置能滿足于各種不同的生產工藝。既可平地安裝、也可高平臺安裝。箱內散熱器為立式(空間大，便于維護保養清理)主傳動為分開獨立式傳動，伺服控制系統。
USAGE AND FEATURE
D08 heat-setting stenter is used for woven fabric and knitted fabric. 2 to 12 chambers for choice, different chambers for different technical process. This machine can be installed on flat ground and also on high platform.Radiator inside of the chamber is vertical type (space is big enough for maintenance and clean). Maintransmission is independent running with servo control system.
